Sanitary Diaphragm Valves
Steriflow offers a variety of sanitary diaphragm valves including manual or air actuated forged 2-way or cast 2-ways, ported and tandem valves, barstock zero static T-block, point of use T-block, divert tank bottom and custom block body valves
Aseptic 2-way Diaphragm Valves ⟶
Standard, Compact, Manual or Pneumatically Actuated
Cast Body 2-way Diaphragm Valve ⟶
Manual or Pneumatically Actuated Cast Body 2-way Valves
Ported, 2-way Valve ⟶
Manual or Pneumatically Actuated Forged Body 2-way Valves with Access Port
Tandem Access Valve ⟶
Manual or Pneumatically Actuated Forged Body 2-way valves with Access Port
Zero Static Tee Block Valve ⟶
Manual or Pneumatically Actuated Inline Barstock Zero Static Use Point Valve
Sterile Access Block Valve ⟶
Single or Double Sterile Access, Manual or Pneumatically Actuated
Zero Static Point of Use Valve ⟶
Standard, Compact, Manual or Pneumatically Actuated Point of Use (POU Valve)
Divert Multi-Path, Block Valve ⟶
Manual or Pneumatically Actuated Barstock Multiple Path Diversion Valves
Custom Block Body Valves, Clusters ⟶
Manual or Pneumatically Actuated Custom Barstock Valves and Valve Clusters
Tank Bottom Diaphragm Valve ⟶
Manual or Pneumatically Actuated Vessel Outlet Valve
Your List
Email List
Get A Quote
Steriflow sanitary diaphragm valves provide precise, hygienic fluid control with full traceability and regulatory compliance, ensuring reliable, contamination-free operation in critical processes.
How do Sanitary Diaphragm Valves Work?
Sanitary diaphragm valves regulate fluid flow using a flexible diaphragm. When the diaphragm is pressed against the valve seat, it forms a secure seal that stops fluid movement in both directions.
Key Applications of Hygienic Diaphragm Valves
Our hygienic diaphragm valves are used in the Food & Beverage, Pharmaceutical & Biotechnology, and Personal Care & Cosmetics industries for applications including:
General Use
- Single-valve weir design for manual on/off or air-actuated flow control in drug additives, drug products, and clean utility systems.
Upstream Processing
- Bioreactors/Fermenters: Regulation of WFI (Water for Injection), growth media, intermediate drug products, clean dry air and gases, clean steam, and other clean utility fluids.
- Perfused Bioreactors: Precise control of retentate or permeate fluid flow.
Downstream Processing
- Control of WFI, buffers, solvents, intermediates, and finished drug products, along with clean dry air, gas, steam, and utility fluids in processes such as:
- Separation
- Filtration
- Chromatography
- Formulation
- Fill-finish operations
Buffer & Media Preparation
- Flow regulation of WFI, buffers, growth media, clean steam, and other clean utility fluids.
Comprehensive Product Range
Steriflow offers a wide range of sanitary/ high purity diaphragm valve series to meet diverse sanitary applications:
| Aseptic 2-way Diaphragm Valve | Cast Body, 2-way Diaphragm Valve |
| Ported, 2-way Valve | Tandem Access Valve |
| Zero Static Tee Block Valve | Sterile Access Block Valves |
| Zero Static Point of Use Valve | Divert Multi-Path, Block Valve |
| Custom Block Body Valves, Clusters | Tank Bottom Diaphragm Valve |

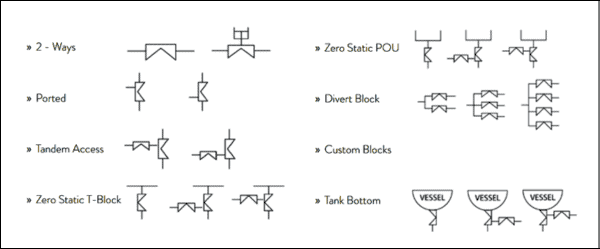

Valve by Application
Technical Specifications
- Body & Trim Material: traceable ASME and DIN grade of 316L and Super-Austenitic Stainless Steel and Super Alloys readily available
- Size Range: 1/4″ – 4″ (DN8 – DN100) »
- Manual or Air Actuated
- Surface Finish:
- Wetted Interior: ASME BBE SF5 20 Ra µin (0.5 Ra µm).
- Electropolish standard, SF4, and better finish available
- Exterior: See individual model specifications
- Diaphragm:
- All FDA, FDA/USP, Class VI, ADI-TSE Free
- TFM/EPDM Backer
- EPDM – Peroxide Cured
Why Choose Steriflow Aseptic Diaphragm Valves?
- Certified Quality: BSEN 10204 Type 3.1 reports, FDA-compliant plastics/elastomers, USP Class VI tested, ADI/TSE free, full lot traceability.
- Proven Documentation: Unique serial numbers with complete Unicert and heat number traceability.
- Industry Credentials: ISO 9001:2015, CRN Numbers, active member of ASME BPE, ISPE, FCI.
- Trusted Performance: Engineered for pharmaceutical, biotech, and sanitary applications with global hygienic standards.
Ready to Optimize Your Process?
Contact our technical specialists today to discuss your specific application requirements. Our team will help you select the ideal Steriflow sanitary diaphragm valve for maximum performance and reliability.
