JSHM Series Sanitary Control Valves by Steriflow Valve

Category:	Sanitary Control Valves
Application:	Flow Control Distribution Loop and Sub-loop Manual Flow Balance Control Hot Loop POU Sample Flow Control Flow Control (USP PW) Distribution Loop and Sub-loop Manual Flow Balance Control (USPPW) POU Sample Flow Control Condensate Sampling Hot Loop POU Sample Flow Control (CS)
Media:	WFI USP PW Clean Steam

Manual control, low to medium flow, Jorlon diaphragm

Angle style or inline manual control valve, for precision control of media, process, purified water and clean utilities in the biopharmaceutical, pharmaceutical, food & beverage and consumer health & beauty industries:

Bioreactor/fermenter process input control: growth media, buffer, WFI, sparge and blanket gas
Separation input and output control: WFI, process, product and waste streams
Purification input and output control: Elution media, solvents, buffer, WFI
Clean utilities: USP PW (purified water), WFI, pure steam, CIP, clean compressed air and gas
F & B and Consumer H & B Process: inputs, outputs, purified water and clean utilities

Features & Benefits

Available in both inline and angled body variants
Top entry design facilities inline, five minute maintenance
Minimal internal volume
Zero holdup and gravity draining through the outlet with valve open in vertical down flow installation. Separately drainable inlet and outlet with valve open in horizontal installation

Specifications

Sizes: 1/2″, 3/4″, 1″, 1-1/2″ (DN15, DN20, DN25, DN40)
End Connections: ASME, DIN and ISO tri-clamp, extended tube weld
Cv (Kv) & Flow Characteristic: 0,4 – 3.5 (0,35 – 3,0)
Max. Pressure/Temperature Tube End & Tri-Clamp: 150 psi (10,3 bar) at 350°F (177°C) with PEEK seats: 150 psi (10,3 bar) at 150°F (66°C) with PTFE seats
Wetted Material: ASME SA479 316L (UNS 31603) is standard. EN 10272:2000 GR 1.4435, AL-6XN®, Hastelloy C-22 and others are optional
Surface Finish: ASME BPE SF5, 20Ra (0,5µm) electropolish is standard, 8Ra (0,2µm) optional
Stem Seal – Diaphragm: Jorlon 1/2″ – 1-1/2″, certified to USP Class VI
Soft Seats: PTFE, FDA, USP Class VI, PEEK

Documentation

JSHM Series Data Sheet

JSHM Series Installation & Maintenance Manual

Steriflow Valve Product Guide

Steriflow Valve Product Guide - A4

Resources

Jorlon Facts and Warranty

The majority of Steriflow valves come with the Jorlon diaphragm and, of course, a lifetime diaphragm warranty.

View Resource

J Series Comparison Chart

Understanding the differences among the J Series gas regulators

View Resource

Approvals

CRN (Canadian Registration Number)
PED Category 1 (Pressure Equipment Directive): 1-1/2″
SEP Declaration (Sound Engineering Practice): 1″ and under
ATEX Certified
EC Declaration of Conformity
All products use FDA and USP Class VI approved soft goods and seals where possible. Consult each product data for details

STEP Files

JSHM Series

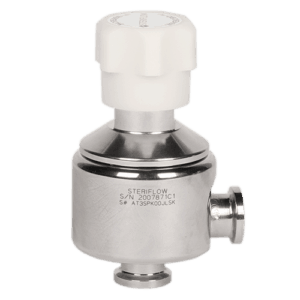

1/2″ JSHM Series with Angle Body ASME BPE Tube Ends
